【Zhejiang, China】 - In the precision transformation journey of a crankshaft from forging to finished product, one process, while changing no dimensions, directly impacts the very survival of the engine-non-destructive testing (NDT). This process acts like an "industrial doctor," scrutinizing every corner of the crankshaft with the keenest "eyes" to ensure no internal crack or surface defect escapes detection. It is the final and most uncompromising quality barrier in crankshaft manufacturing. Recently, the technical team of Zhejiang Weilin Mechanical Co., Ltd. conducted an in-depth on-site shooting of the NDT process for a CAT320 crankshaft (example part number: 125 3005) in the workshop, capturing the entire process of this "quality gatekeeper" through the lens and continuing our Crankshaft Manufacturing Process Series.
NDT: A "Full-Body CT Scan" for the Crankshaft
During forging, heat treatment, and machining, microscopic defects-such as forging laps, heat treatment cracks, and grinding burns-can develop, invisible to the naked eye. Under alternating stresses during engine operation, these defects can gradually propagate, ultimately leading to crankshaft fracture and catastrophic failure. The mission of NDT is to thoroughly detect these "hidden killers" before the crankshaft leaves the factory:
· Magnetic Particle Testing (MT) : For detecting surface and near-surface defects in ferromagnetic materials (such as forged steel crankshafts). By magnetizing the crankshaft, leakage magnetic fields form at defect locations, attracting magnetic particles to create visualized indications. Any cracks, seams, or laps are revealed.
· Ultrasonic Testing (UT) : For in-depth detection of internal defects. An ultrasonic transducer transmits sound waves into the crankshaft; echoes reflect when encountering defects. By analyzing echo signals, the location and size of internal porosity, inclusions, or flakes can be precisely determined.
On-Site Shooting: The "Industrial Doctor" Under the Lens
Recently, at Zhejiang Weilin Mechanical's production workshop, the technical team conducted a comprehensive shooting session of the NDT process for a CAT320 crankshaft (corresponding to part number 125 3005). Through high-definition lenses, we can clearly observe:

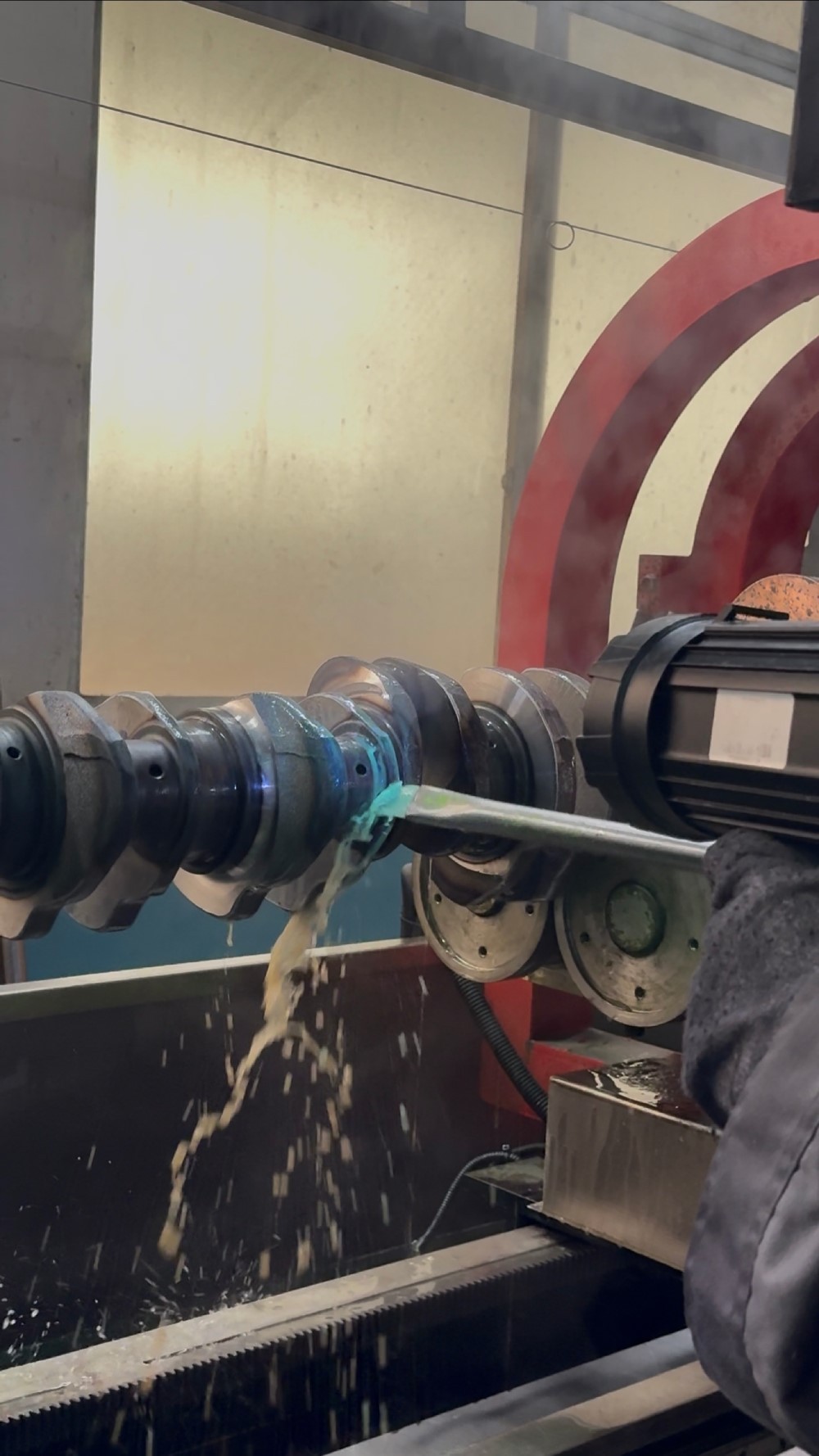

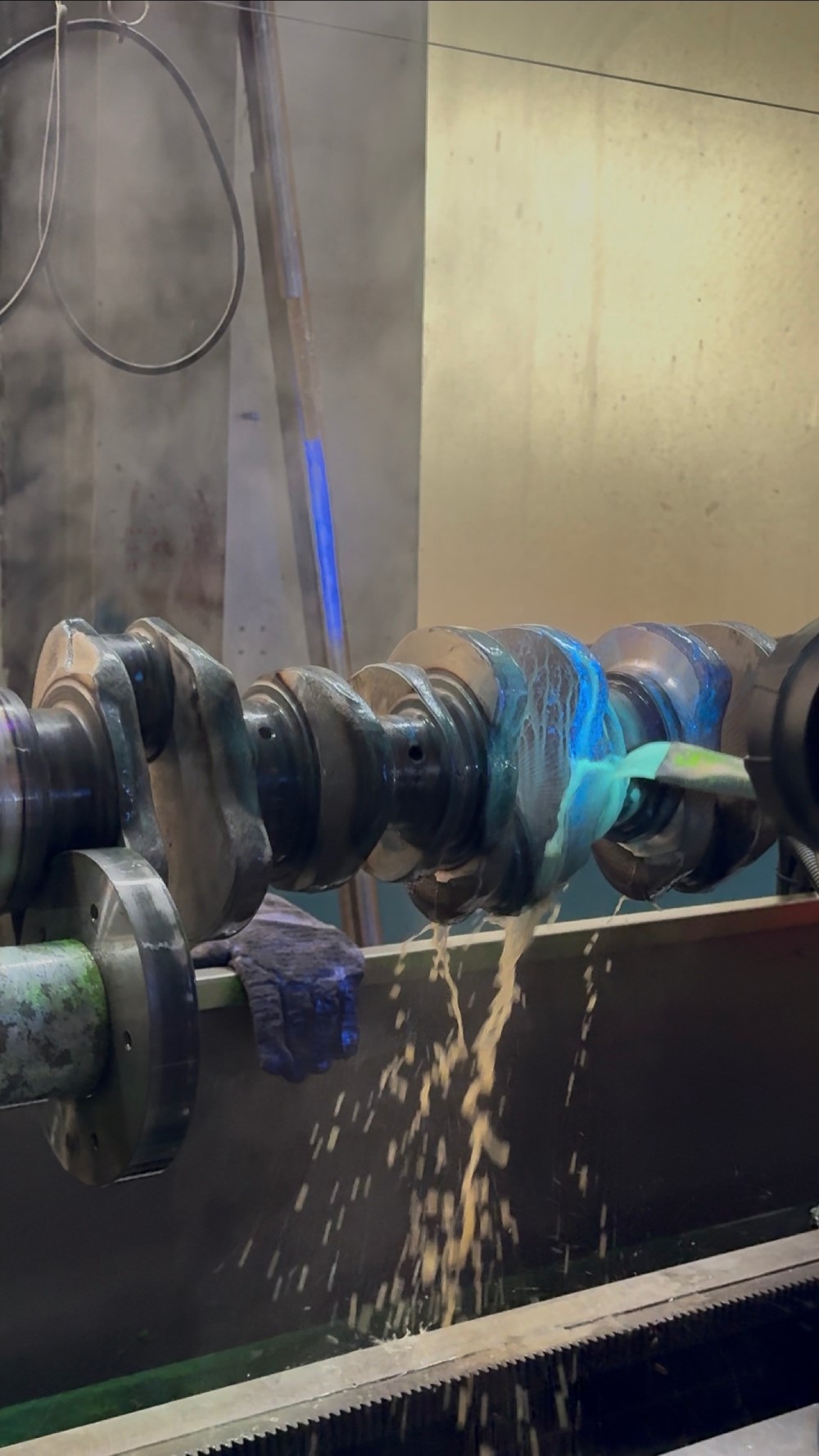

· Magnetic Particle Testing (MT) – The "Revealing Mirror" for Surface Defects: The crankshaft is fixtured on a dedicated magnetizing unit and magnetized. Simultaneously, a suspension containing fluorescent magnetic particles is evenly sprayed over the crankshaft surface. Under UV light (black light), technicians meticulously inspect every journal, fillet, and crank web. If a crack exists, the magnetic particles accumulate at the defect, forming bright fluorescent lines. Under the lens, technicians focus intently, missing no abnormal indication.
· Ultrasonic Testing (UT) – The "X-Ray Vision" for Internal Defects: At critical areas of the crankshaft (main journals, crankpins, fillet transitions), technicians apply couplant and tightly couple the ultrasonic transducer. On the screen, waveforms bounce in real-time. As the transducer scans a defect-free area, the waveform appears regular; encountering an internal defect, an abnormal reflection peak appears. Based on the peak's position and amplitude, technicians accurately determine the defect's depth and size.
· Recording and Judgment: NDT results for each crankshaft are meticulously recorded. For suspicious signals, technicians perform retesting or use alternative methods for cross-validation. Only crankshafts that pass all NDT inspections proceed to the next process or packaging for shipment.
In the video, a CAT320 crankshaft completes a full suite of NDT inspections. The technician solemnly signs the inspection report, which will accompany the crankshaft to the customer as the ultimate quality endorsement.

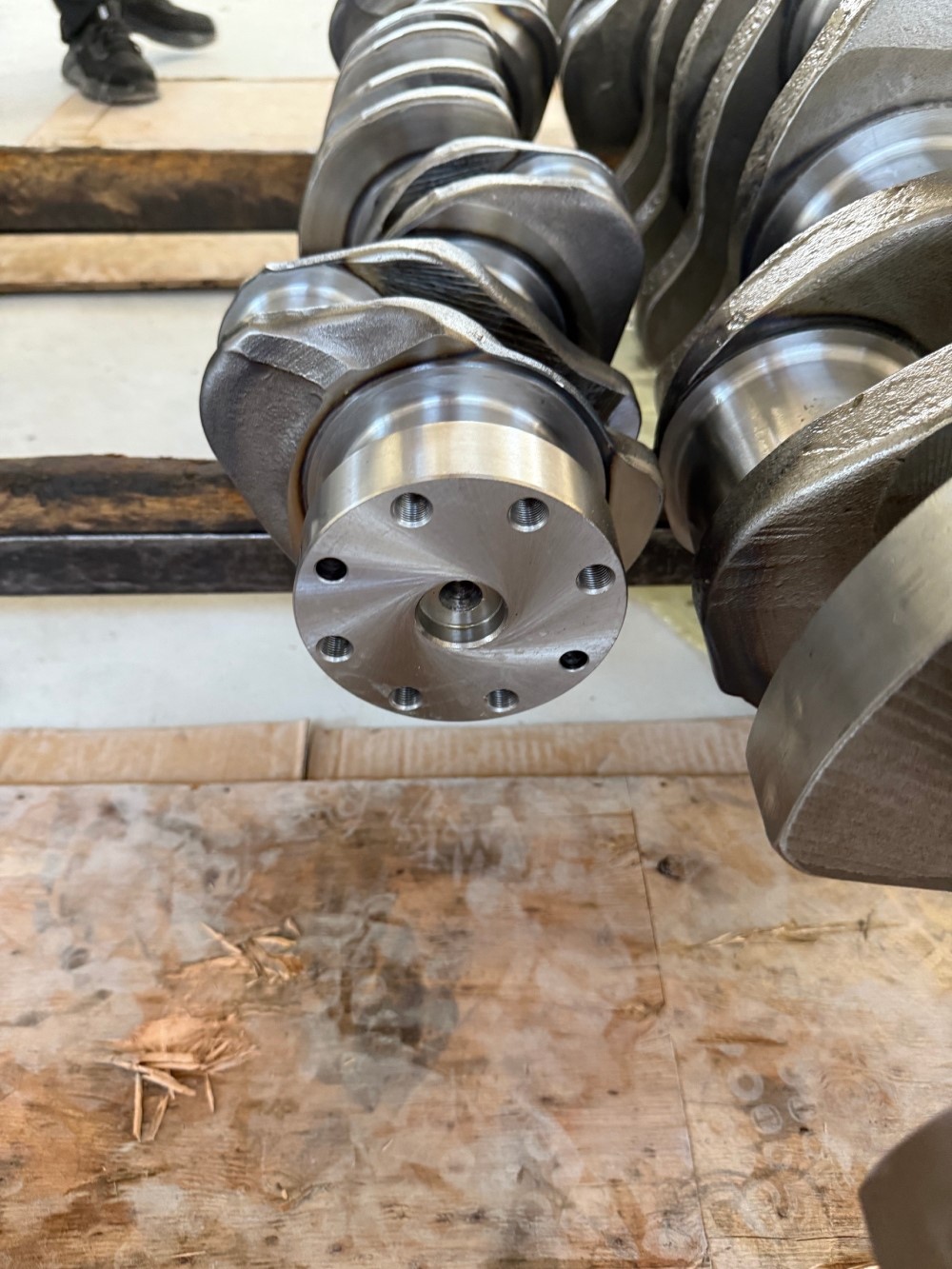

CAT S6KT

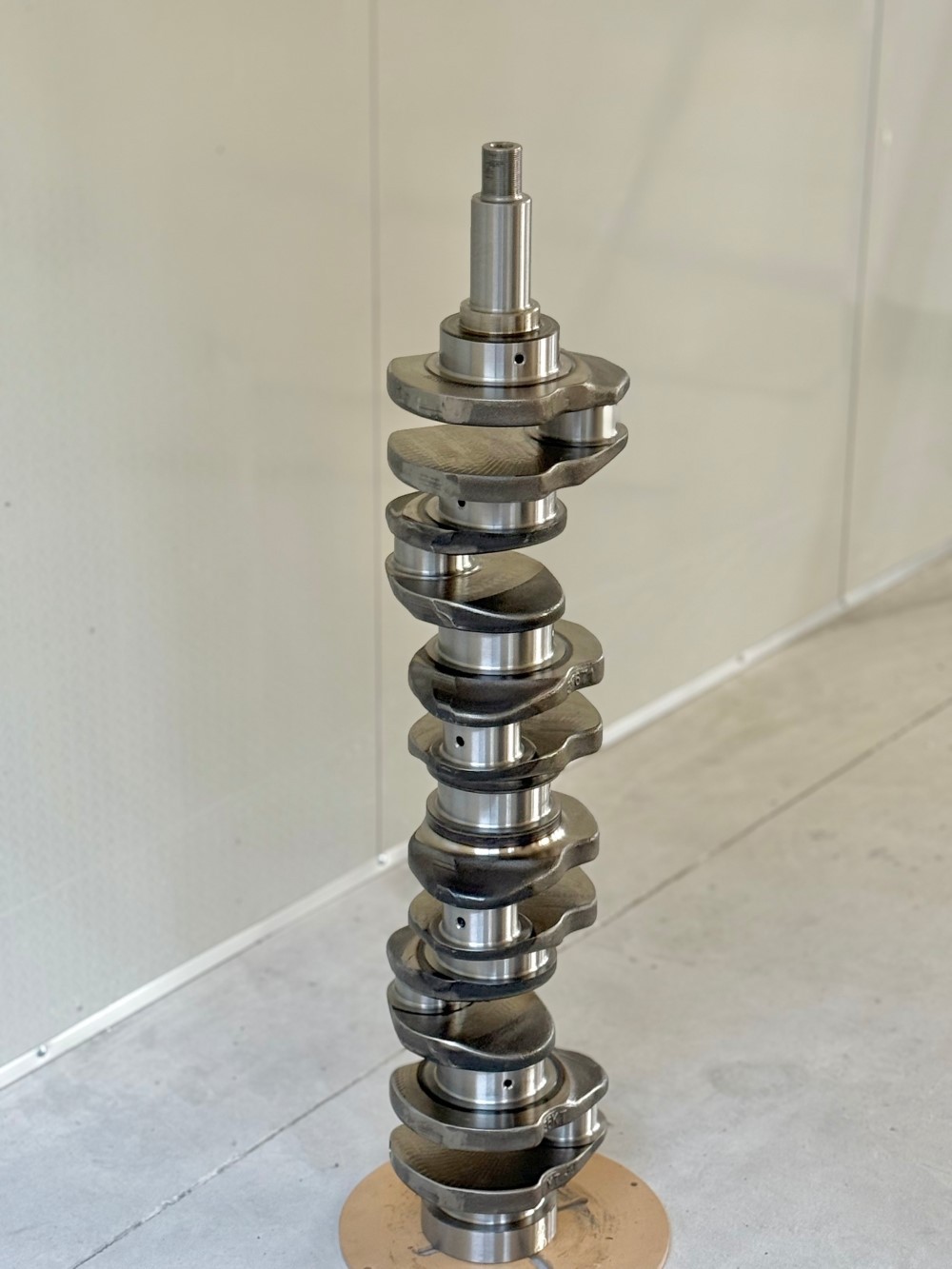

CAT S6KT

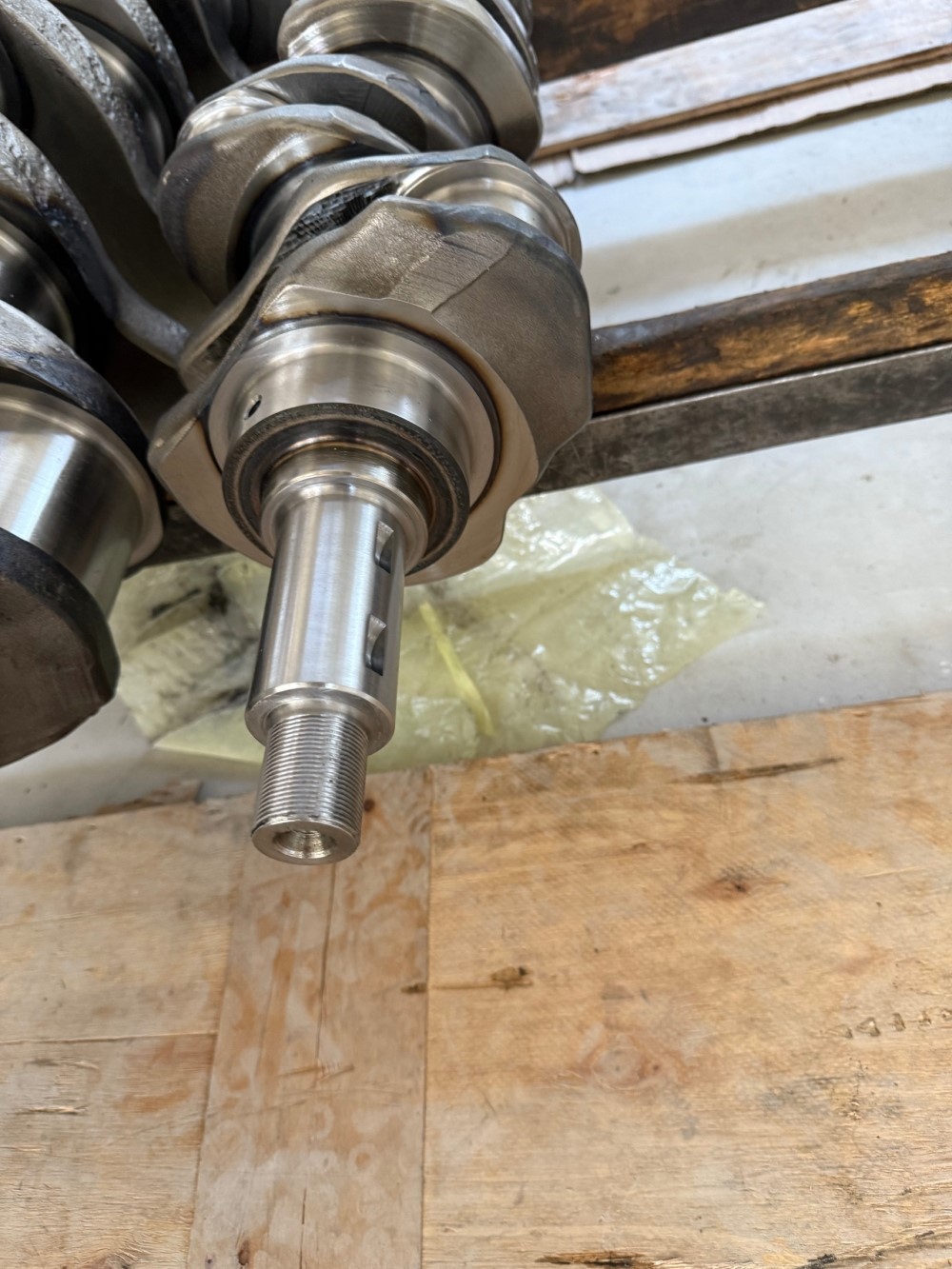

CAT S6KT
Technical Value: The Final Guardian of the Zero-Defect Goal
In NDT of the CAT320 crankshaft, Zhejiang Weilin Mechanical executes inspection requirements exceeding industry standards:
· 100% Full Inspection: Every single crankshaft, regardless of batch size, undergoes 100% MT and UT at critical locations. Sampling inspection is never used.
· Dual-Method Verification: For critical areas (such as fillets and areas around oil holes), both MT and UT are used for cross-validation, ensuring no blind spots.
· Strict Standards: NDT standards reference ASTM E709 (MT) and ASTM E588 (UT), with additional internal acceptance criteria more stringent than standard.
· Personnel Certification: All NDT operators hold internationally recognized certification (e.g., ASNT, ISO 9712) and undergo regular training and ability test.
Customer Value: Safety is the Non-Negotiable Bottom Line
For end users, NDT is the final line of defense against catastrophic failure:
· Eliminates Premature Failure: Detecting and rejecting crankshafts containing dangerous defects fundamentally prevents fractures early in engine service life.
· Protects Personnel and Equipment Safety: Eliminates the risk of severe safety incidents such as engine overspeed or block puncture caused by crankshaft fracture.
· Enhances Brand Reputation: Every 100% NDT-inspected crankshaft carries the manufacturer's quality commitment. Customers receive not just a product, but peace of mind.
Video & Image Access: Feel Free to Contact Us
To more intuitively demonstrate the precise process of NDT, we have compiled high-definition videos and images from the on-site shooting into a technical information package. If you are interested in the manufacturing process of the CAT320 crankshaft or wish to obtain technical parameters related to 125 3005, please feel free to contact our technical team anytime. We will provide you with detailed technical support and product solutions.
